How to restore a backup from a recovery point at R1Soft Backup Print

BY FOLLOWING INSTRUCTIONS ON THIS ARTICLE, ALL DATA CURRENTLY STORED AT YOUR SERVER WILL BE PERMANENTLY ERASED. PLEASE KEEP A BACKUP IN CASE YOU NEED THEM, BEFORE PROCEEDING FURTHER.

In this article, you will learn how to restore your server to a previous state with R1Soft Backup from a selected Recovery Point.

Initially, you will have to configure the Bare-Metal Restore Manager with the Tool R1Soft BootCD Agent ISO, by following the instructions below.

• Log in to MassiveGRID's Secure Customer Portal (https://portal.massivegrid.com/clientarea.php)

• Go to menu Services > My Services.

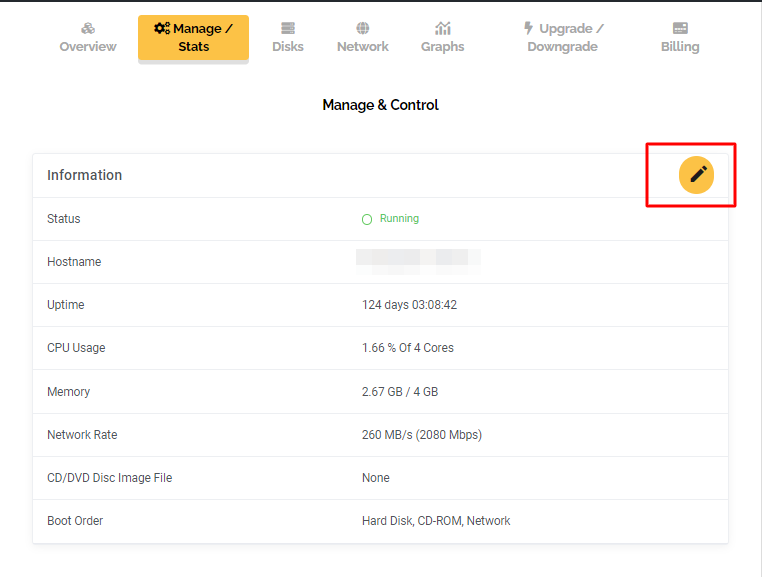

• Select the server you want to restore and navigate to “Manage/Stats” Tab in order to proceed with the ISO selection.

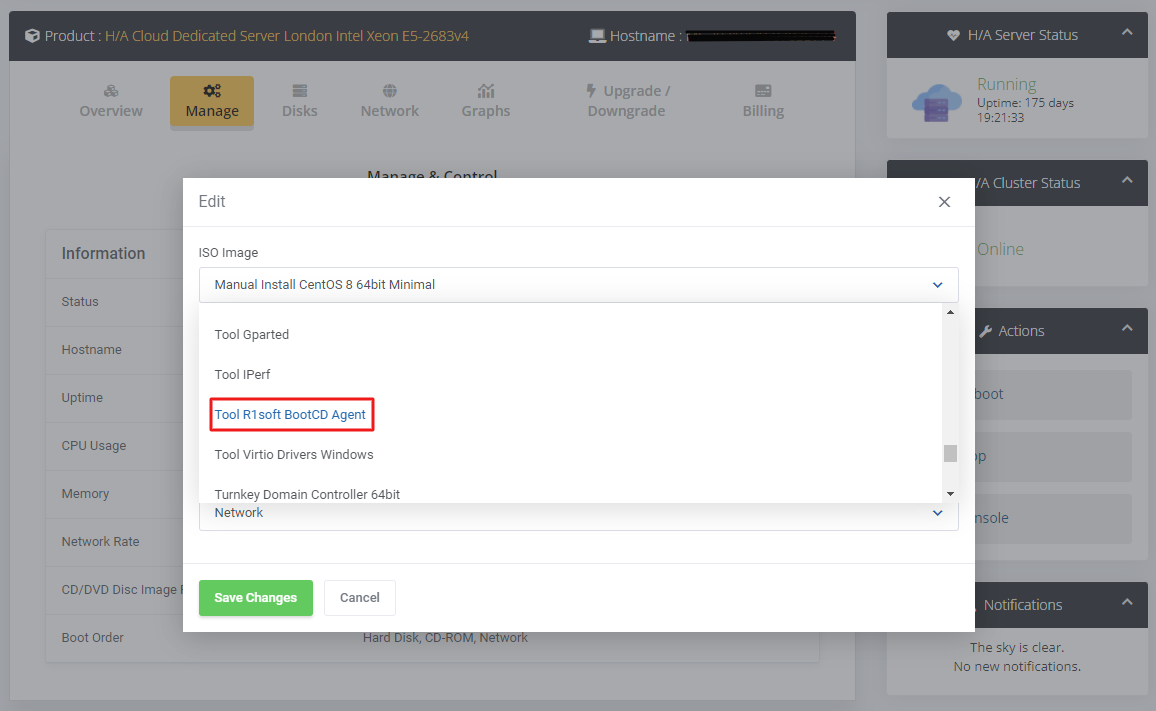

• Select the CD/DVD Disc Image File: Tool R1Soft BootCD Agent.

• Open the noVNC console by navigating on the right sidebar under the “Actions” Tab, click on the commands button and select Reset.

• At the boot screen press ESC & choose the 2nd option "DVD/CD" by pressing “2”.

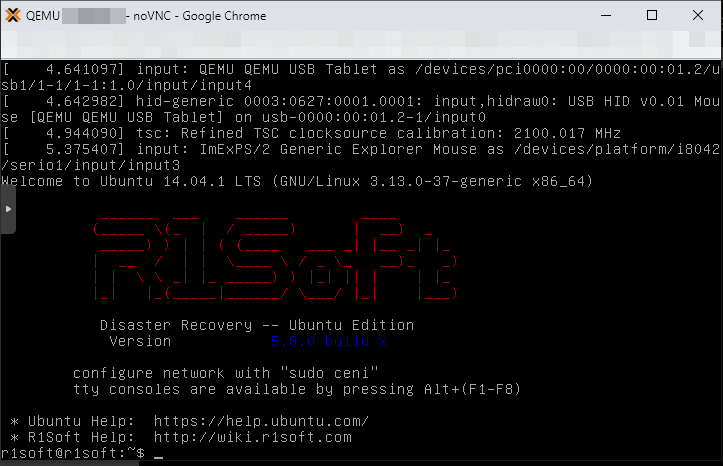

• After loading you should see the red ASCII-art R1Soft logo, very short help screen, and the r1soft shell.

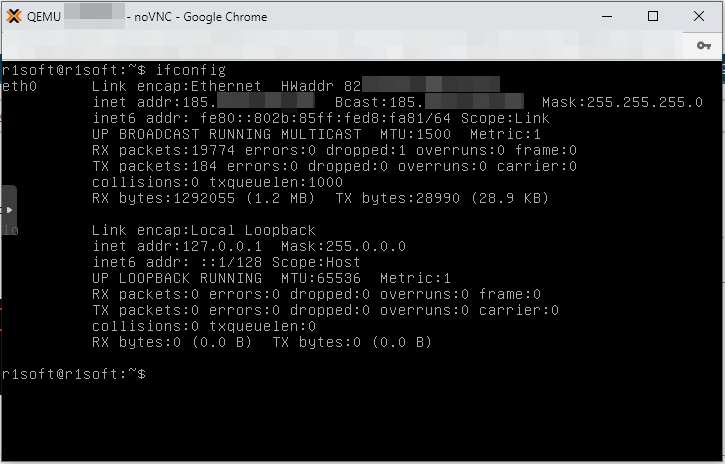

• Type ifconfig and press <Enter> to verify that your IP address has been assigned to your network card.

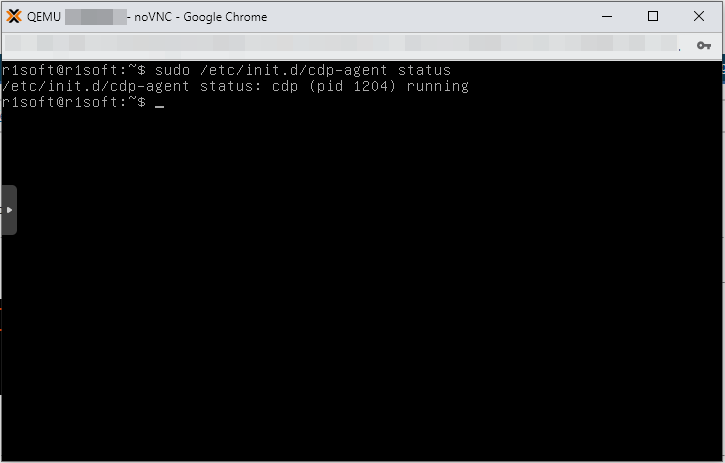

• Type sudo /etc/init.d/cdp-agent status and press <Enter> to verify that the Manager is running.

Now, you are ready to launch a bare-metal restore from your R1Soft Panel by following the instructions below.

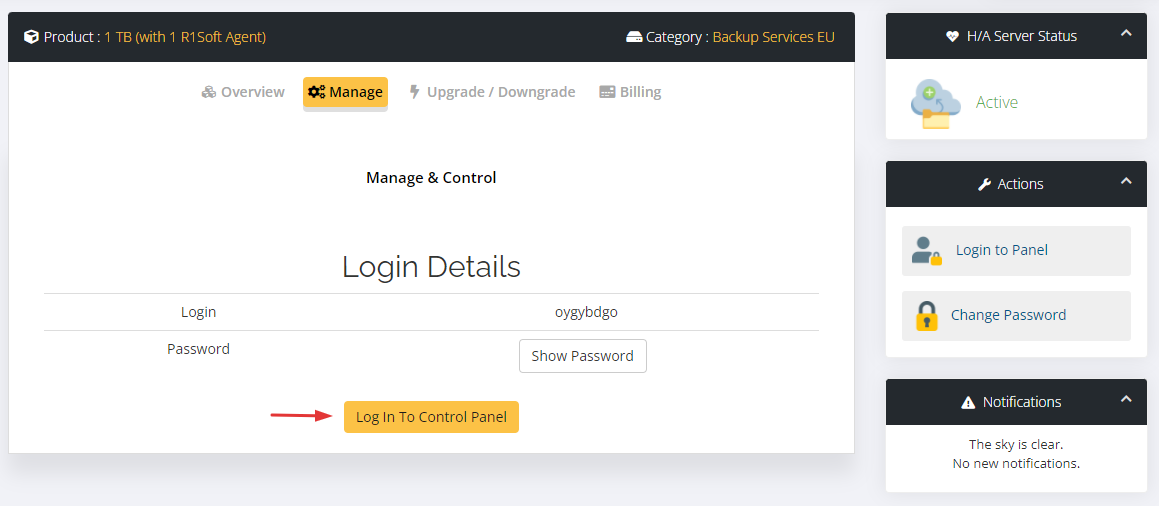

• From MassiveGRID's Secure Customer Portal choose your R1Soft Agent Service and Log In To Control Panel.

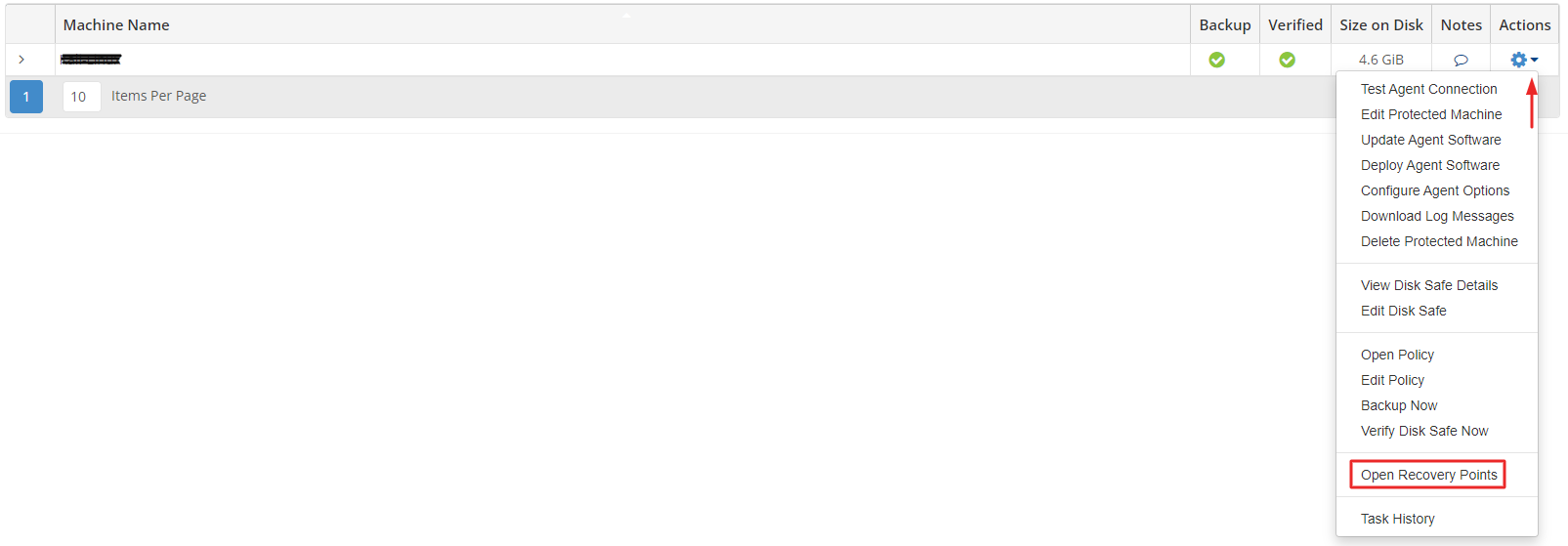

• Select the Protected Machine you want to restore and from the Actions tab select Open Recovery Points.

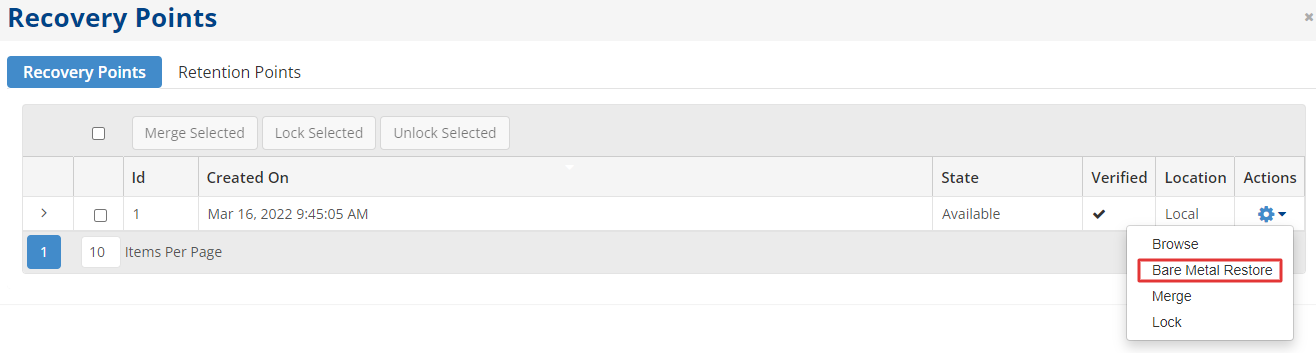

• From the Recovery Points choose your preferred and from the Actions tab select Bare Metal Restore.

• Follow the Bare Metal Restore Guide in order to:

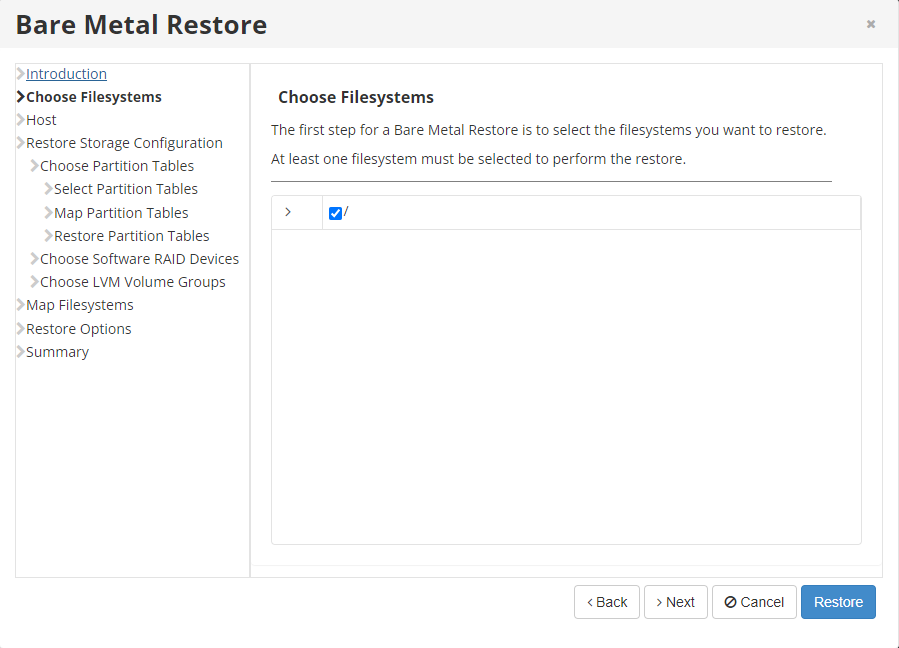

• Select the Filesystems you want to restore.
• Select the Host.
• Select the Storage Configuration.
• Map the filesystems to devices on the target host.
• Select the Restore Options.

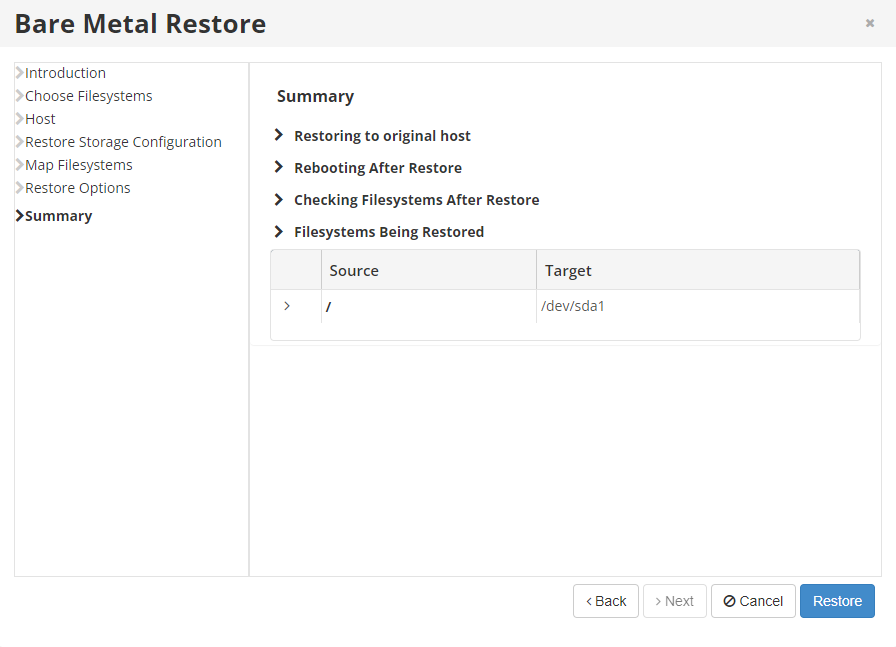

• After completing the above guide, on the "Summary" page, you will need to confirm the selected Bare-Metal Restore options. Each selected filesystem is listed, along with the name of the target device it is being mapped to.

• Click "Restore" to start the Bare-Metal Restore task.

• For more information regarding the Bare Metal Restore Guide, check the official docs from R1Soft http://wiki.r1soft.com/display/ServerBackup/Launch+a+bare-metal+restore

• In case you face any issue regarding the bare-metal restore process, please do not hesitate to contact us by opening a Support Ticket.
